We manufacture a variety of concrete feeders to suit your needs. Give us a call to talk about how we can help.
J Shape Single Sided Concrete Feed Troughs
Available in up to 12ft sections are ideal for forming a feed trough down a side of a shed. The smooth curved internal face of the trough encourages the feed to stay in easy reach of the feeding livestock and also facilitates easy cleaning. These units can be supplied with notched out sections in the front wall to fit around steel stanchions on the side of a shed allowing the head rail to be fixed to the steel stanchions rather than the trough.

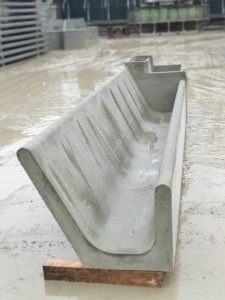

Youngstock J Shape Single Sided Feed Troughs
These are also available in up to 12ft sections. It is a feed container tailored to suit young stock with a narrower flat base and lower front wall. It provides the same smooth internal surface as the wider standard J trough above and is also available with notched out voids in the front wall to fit around steel stanchions to allow obstruction free scraping right up to the trough.

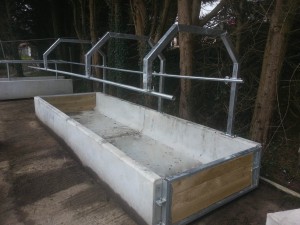

Quad Trough
The largest concrete feed trough we make has been designed to accommodate a quad bike and mounted scraper to allow for fast cleaning. The feed arms are mounted on one side to allow faster and unrestricted filling.

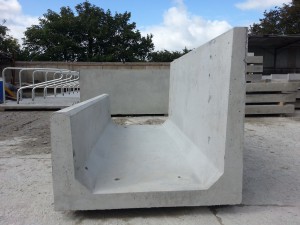

Single Sided Feed Trough
Single sided concrete feed troughs are ideal for forming a feed trough down a side of a shed or against a wall, they could also be used to create a partition through a shed. The single sided concrete cattle feed trough has adjustable arms and is suitable for all cows and large cattle.

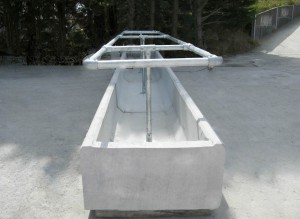

Double Sided Feed Trough
Double Sided concrete cattle Feed Trough These units are ideal for forming feed troughs accessible from all sides through a shed or for in your cattle yard. As the concrete feed troughs come in modular sections it is possible to create any length of feed passage.

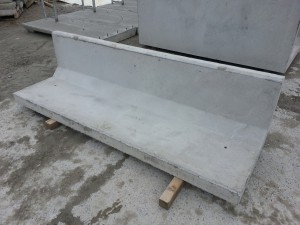

L Shape Feed Wall
Simple L shape feed wall, this product can be used up against an existing wall or barrier and to lift the feed up off the ground and create a feed passage. This is suitable for use with all stock and all loose feeds.
Half Round Feed Walls
Available in lengths of up to 21ft and in either 500mm or 600mm height. These units provide a cow friendly barrier to a feed passage.

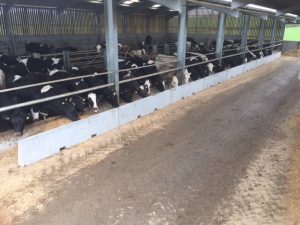

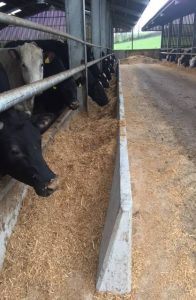

‘Flick Stop’ Walling
The freestanding ‘flick stop’ wall units have integrated fork slots, are 3m in length and tapered to improve stability and ergonomics.
| Feed Troughs | Length | Width | Height Front | Height Back | Weight |
|---|---|---|---|---|---|
| J Shape Single Sided | 3658 | 1150 | 600 | 800 | 1740kg |
| J Shape Young Stock | 3658 | 800 | 500 | 700 | 1321kg |
| Single | 2440 | 1180 | 610 | 1100 | 1822kg |
| Double | 2440 | 1180 | 610 | 610 | 1600kg |
| Quad | 2440 | 1760 | 600 | 600 | 1885kg |
| Youngstock | 2440 | 720 | 520 | 830 | 1102kg |
| L Shape Feed Wall | 2440 | 900 | 610 | na | 925kg |
| Half Round Top Feed Wall | 6400 | 127 | 600 or 500 | na | 1142kg (@600 high) 812kg (@500 high) |
| Feed Stop Wall | 3000 | 275 (@base) 75 (@top) | na | 600 | 685kg |
